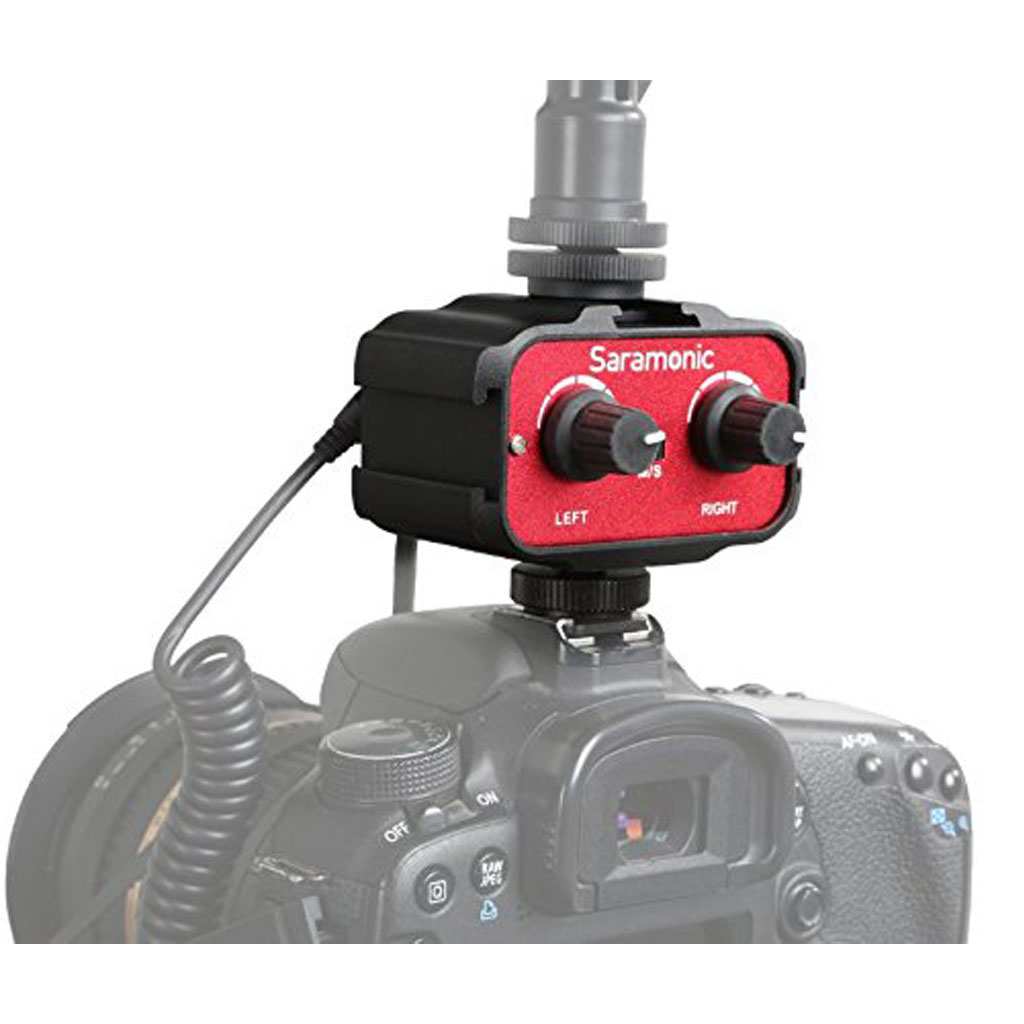

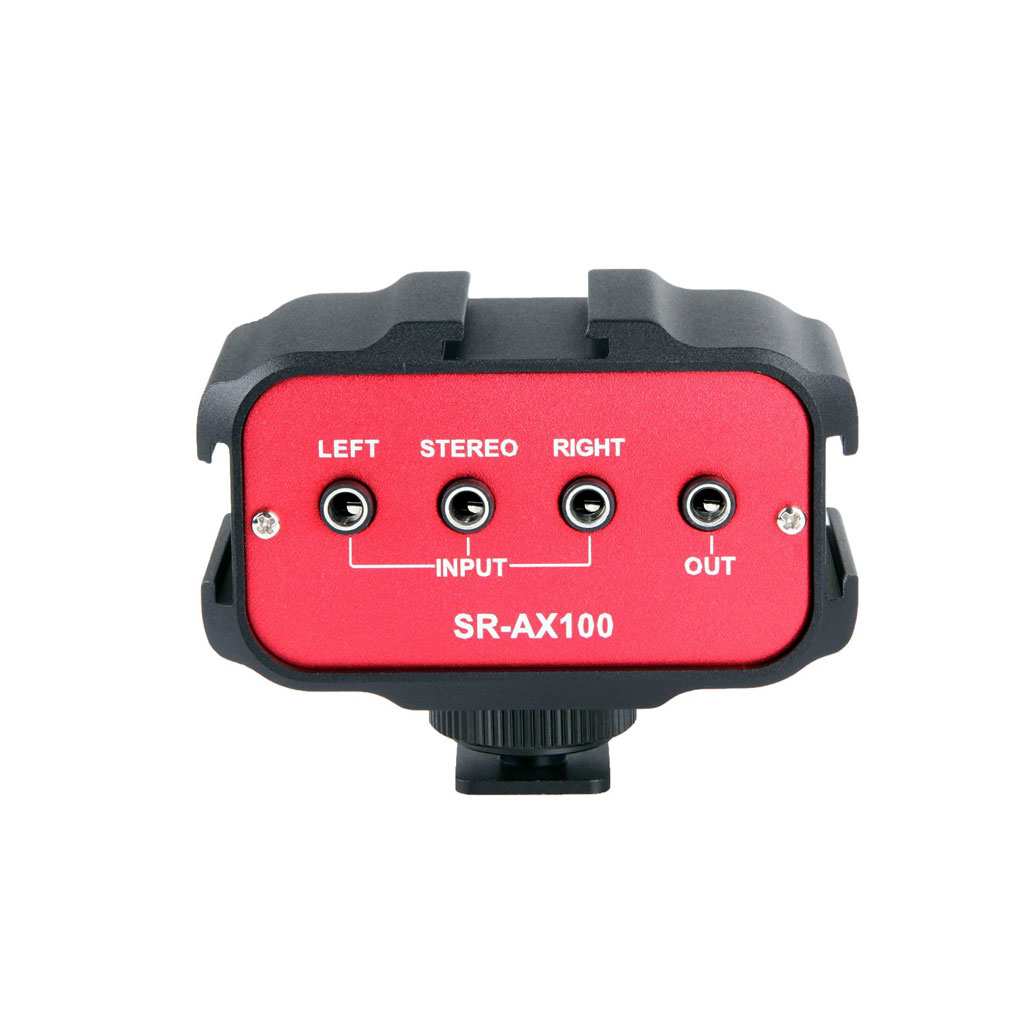

The SARAMONIC SR-AX100 is a two-channel on-camera audio adapter compatible with standard 1/8 - 3.5mm mini-jack inputs and outputs (1 stereo input or 2 mono inputs to one stereo output).

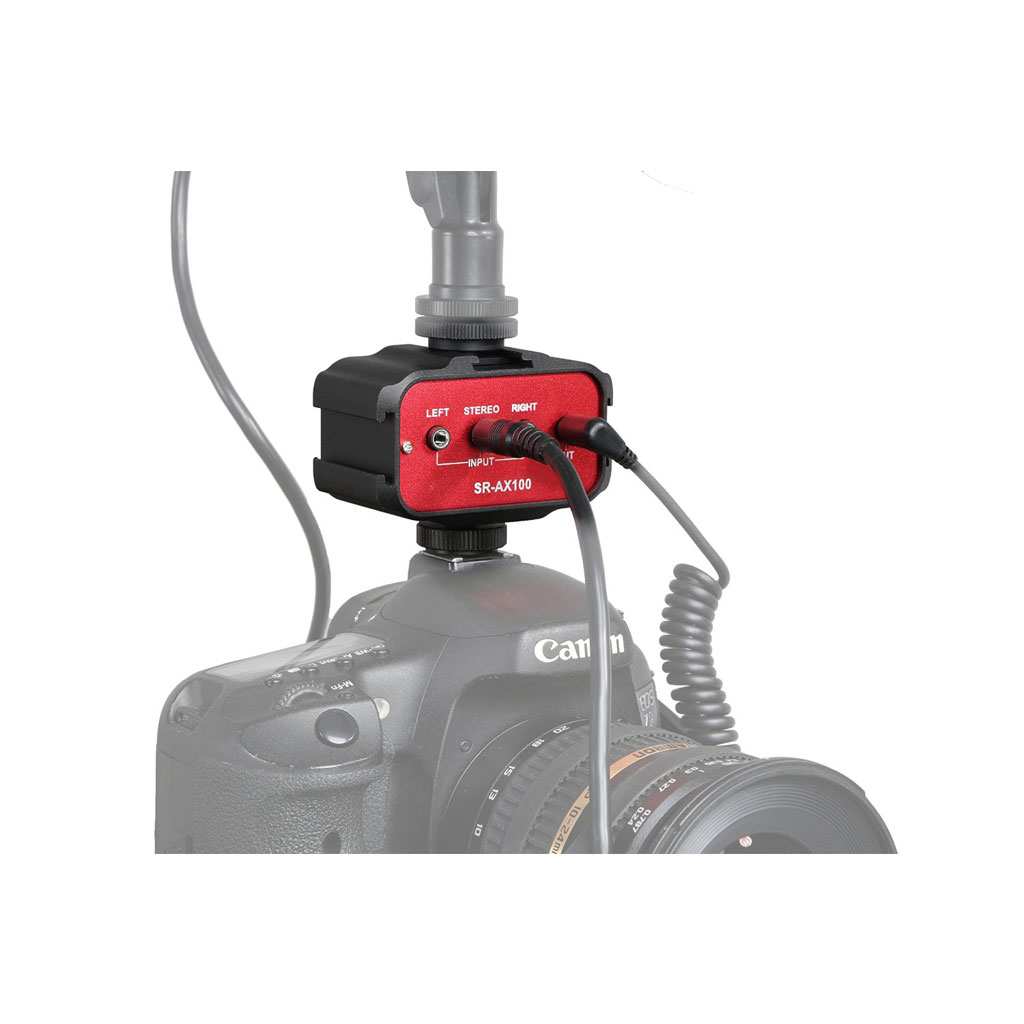

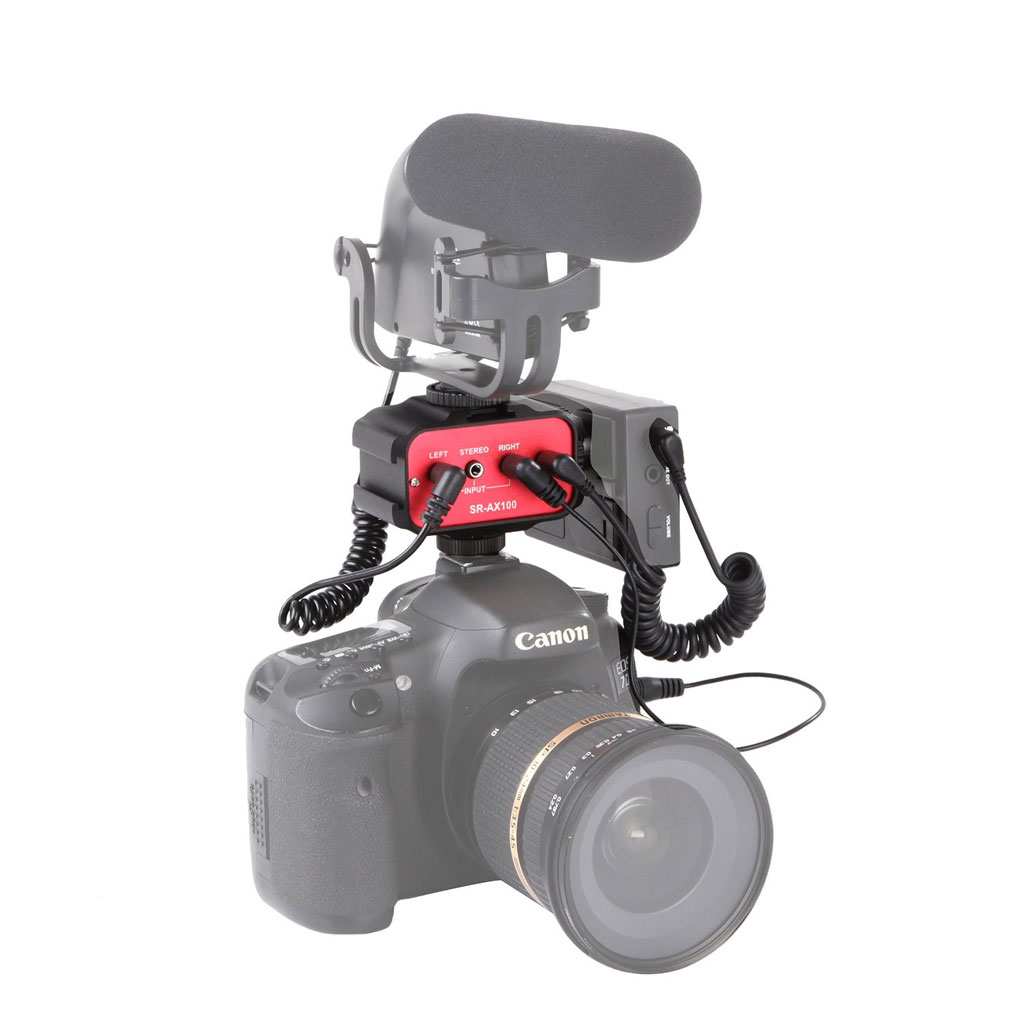

This allows you to use two distinct microphones (e.g., an on-camera microphone and a wireless receiver, two wireless receivers, two wired lavaliers, a pair of microphones with different capsules or stereo...) which will be recorded separately on the L and R channels of your camera with mini-jack audio input.

In this way, the two channels can also be mixed to obtain professional audio.

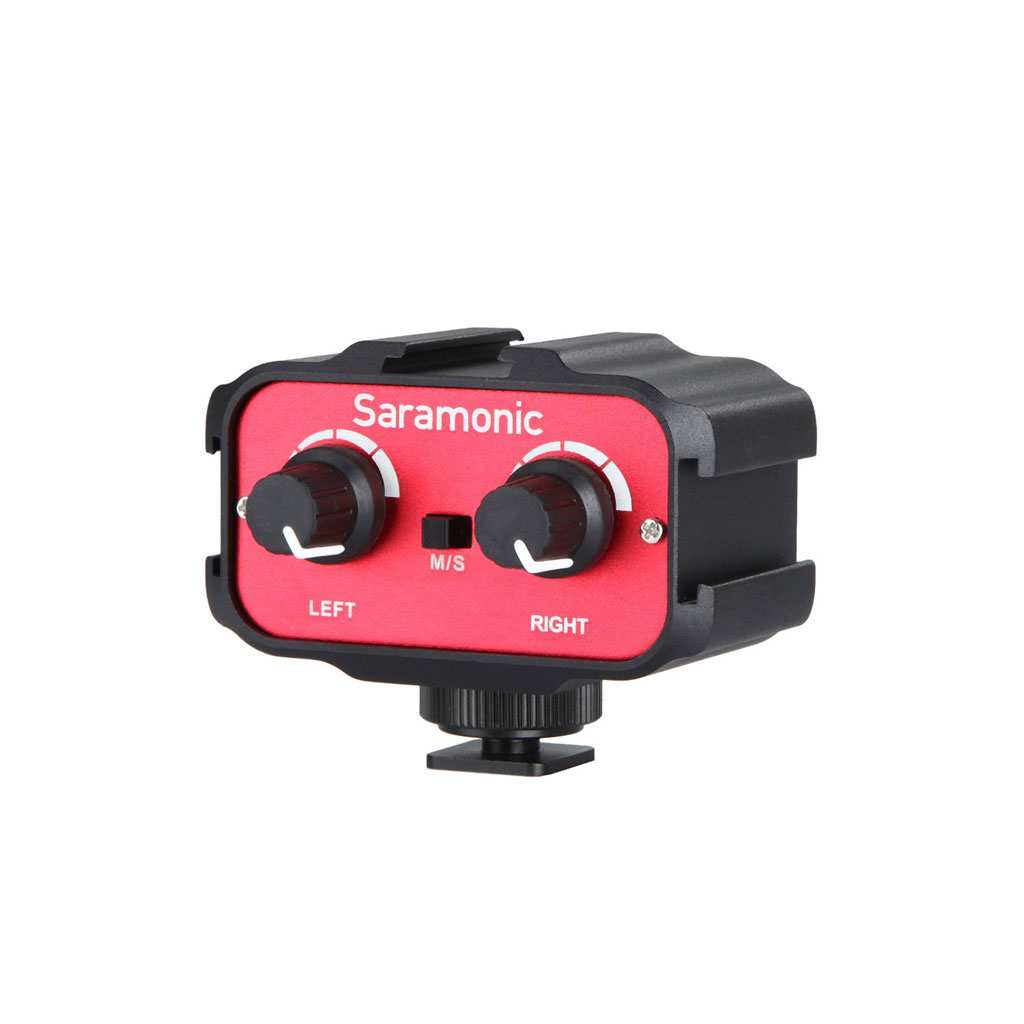

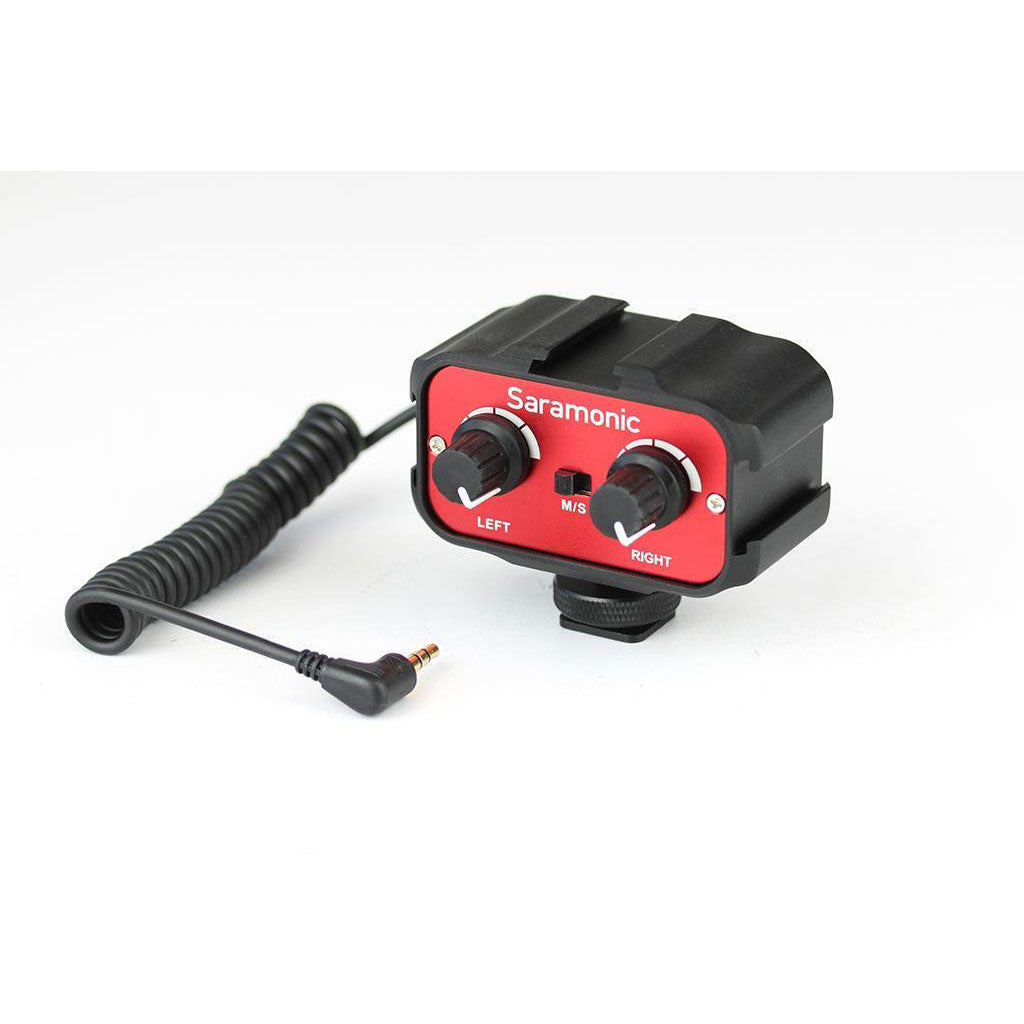

Two potentiometers will allow you to adjust the volume of the signals sent to the camera. A switch will allow you to choose whether to send the two channels separately (Stereo) or superimposed (Mono)

It does not require battery power. Therefore, all connected microphones should NOT require phantom power.

Technical Specifications:

• Input Level MIC setting: -35 dBu minimum;
• Gain Unity Frequency Response 20Hz to 20kHZ(+/-0.5dB);
• Dimensions L 76.0 x W 55.0 x H 58.0 mm;
• Weight 153g.
