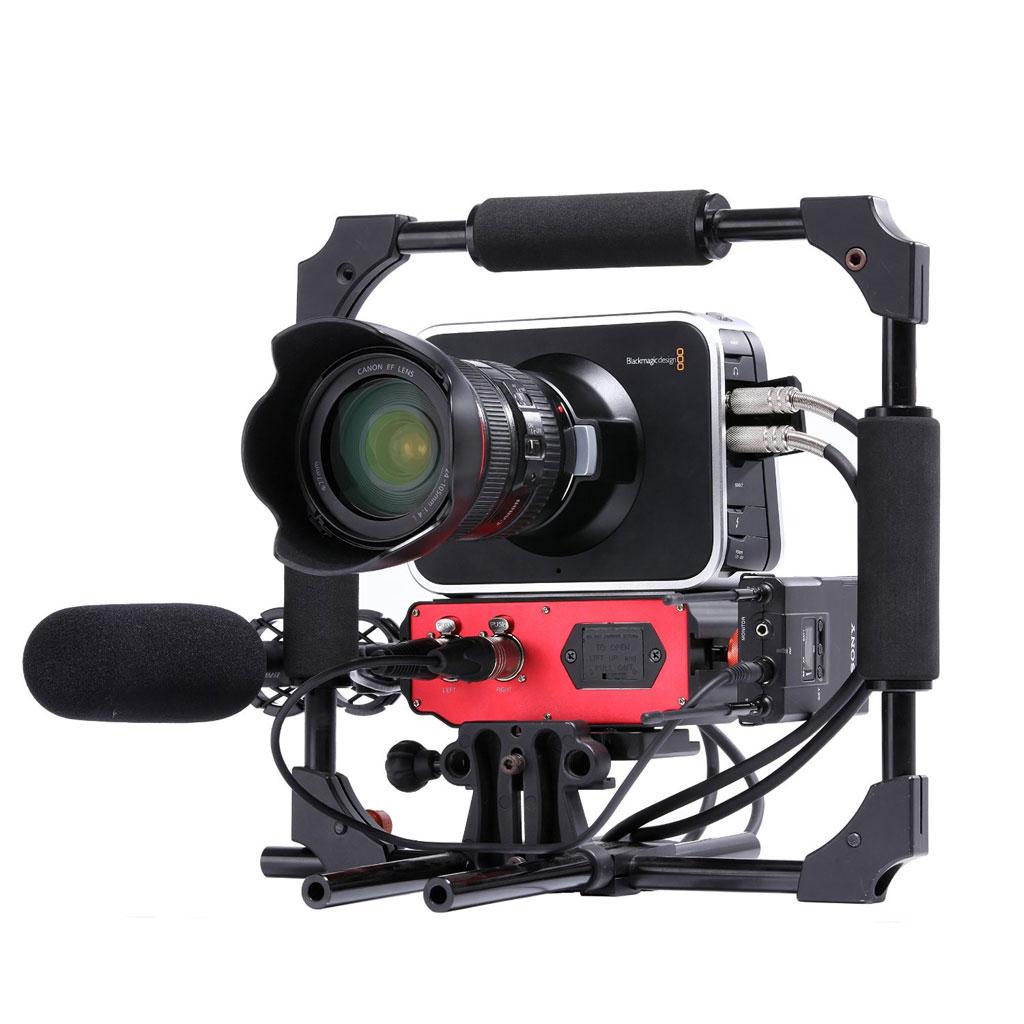

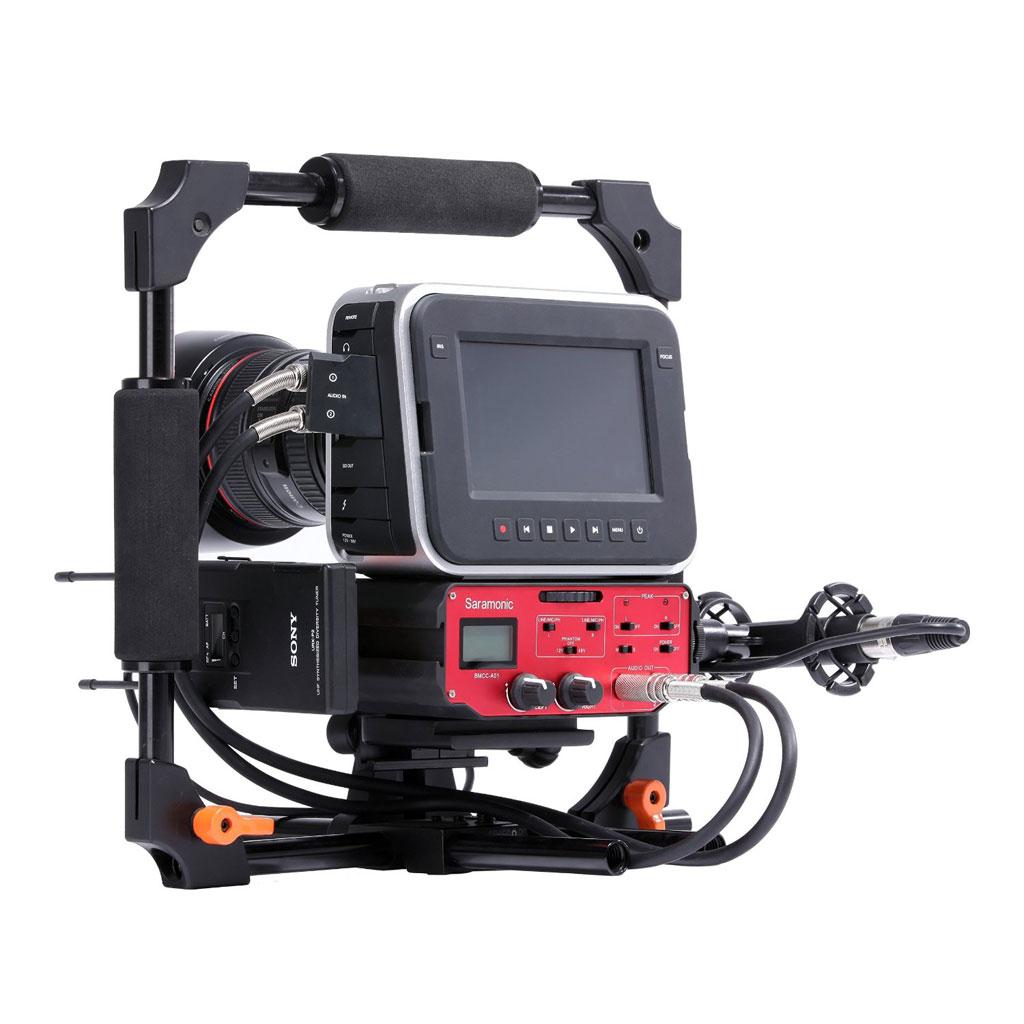

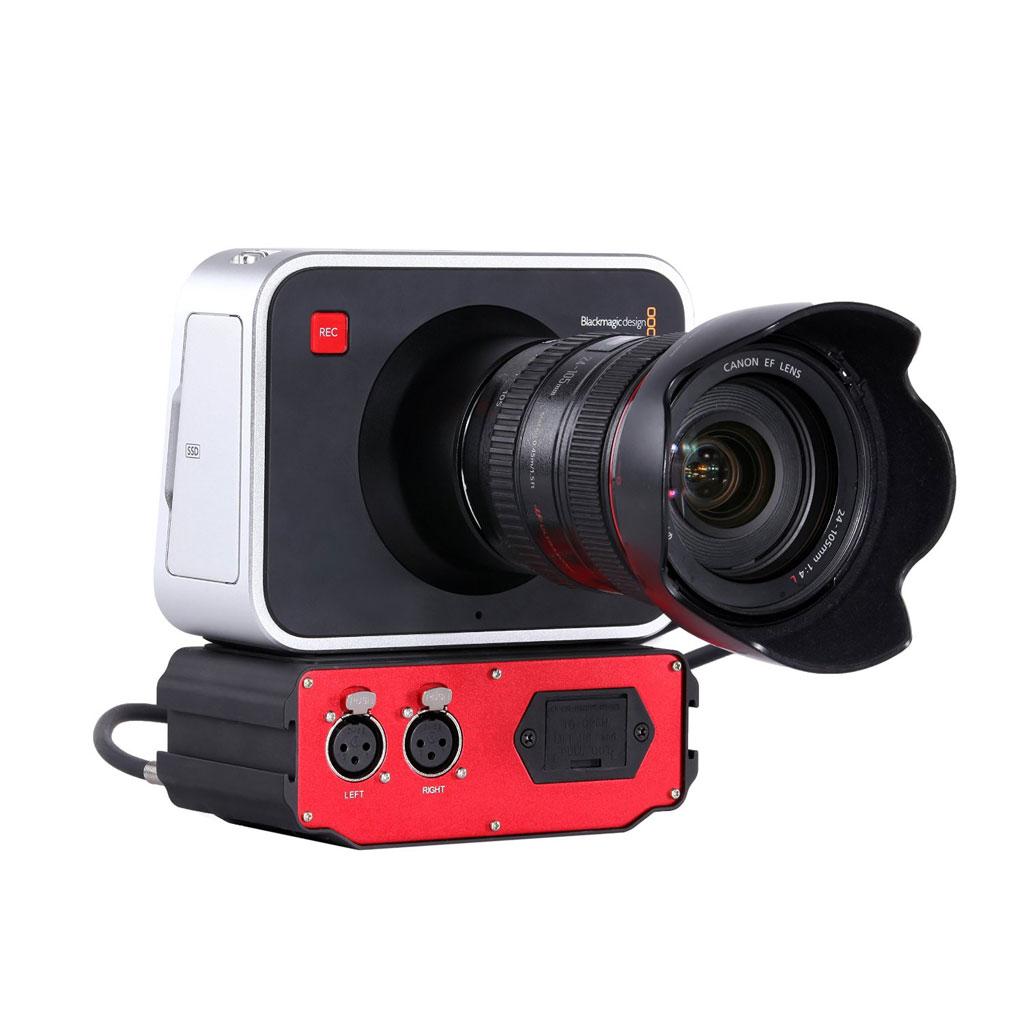

The audio adapter with two XLR channels is a professional product designed for Blackmagic Design Cinema Cameras.

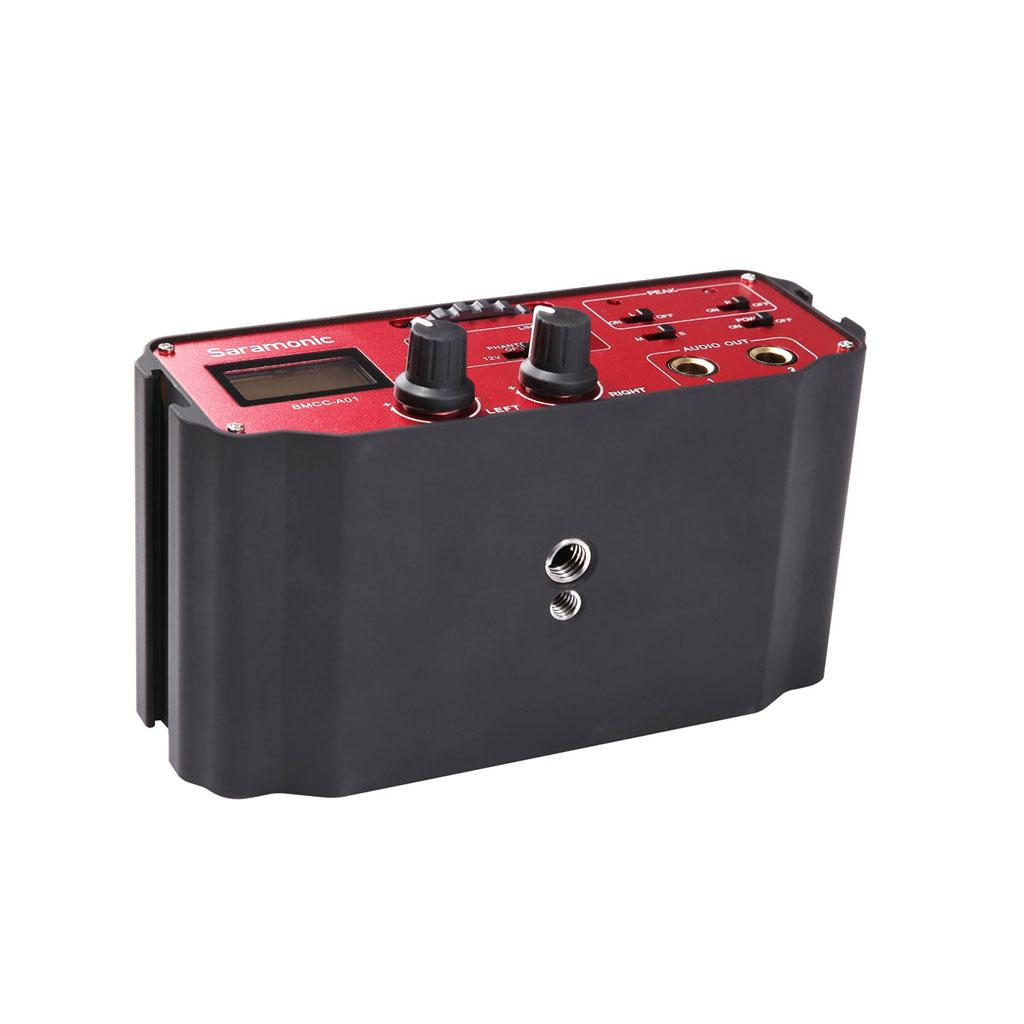

The Saramonic BMCC-A01 is a two-channel XLR adapter ideal for a wide range of professional audio devices such as XLR microphones, wireless microphones, boom microphones, and mixing panels.

Audio from the microphones will be passed to the camera with or without the use of a 9V battery. Key features: level meter, 12V/48V phantom power, and LED indicator.

The XLR audio adapter allows you to record high-quality audio directly into the camera, eliminating the need for separate audio recording.

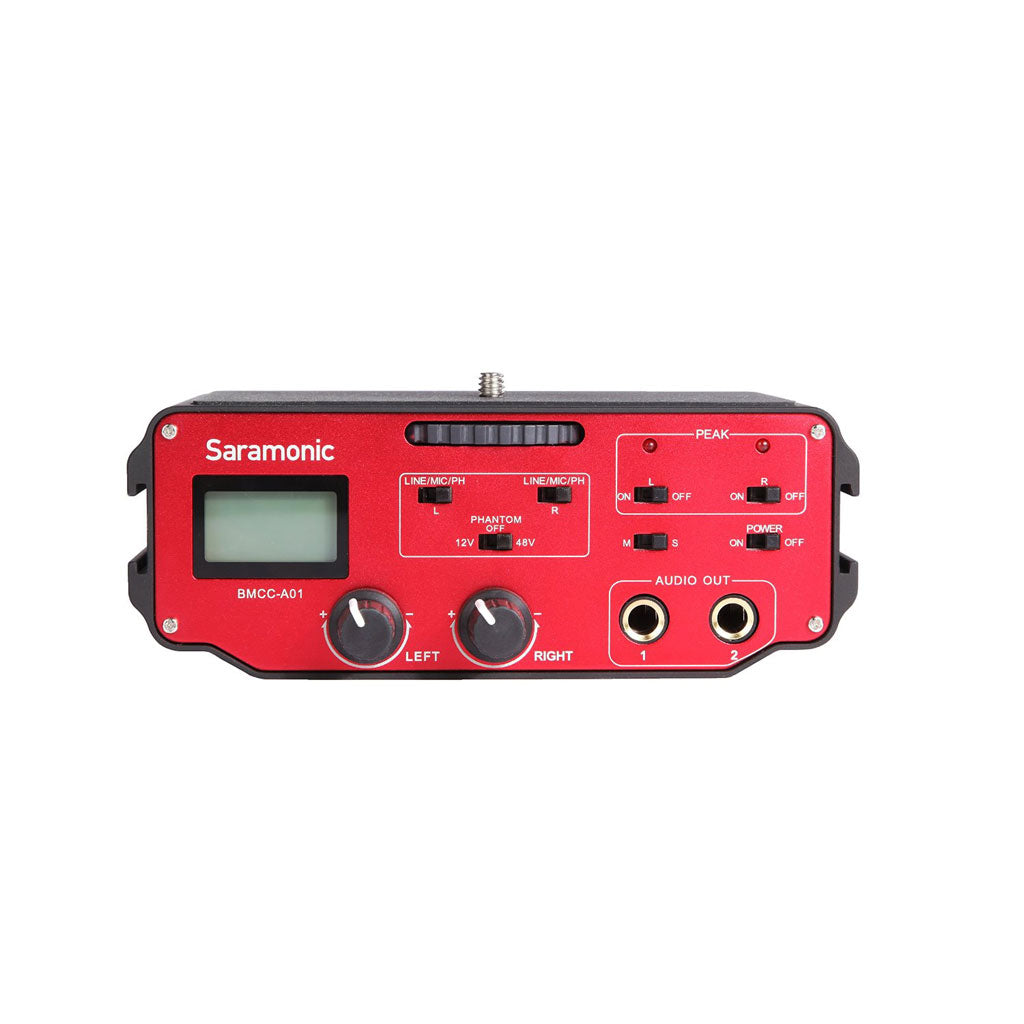

Key features of BMCC-A01 audio adapter:

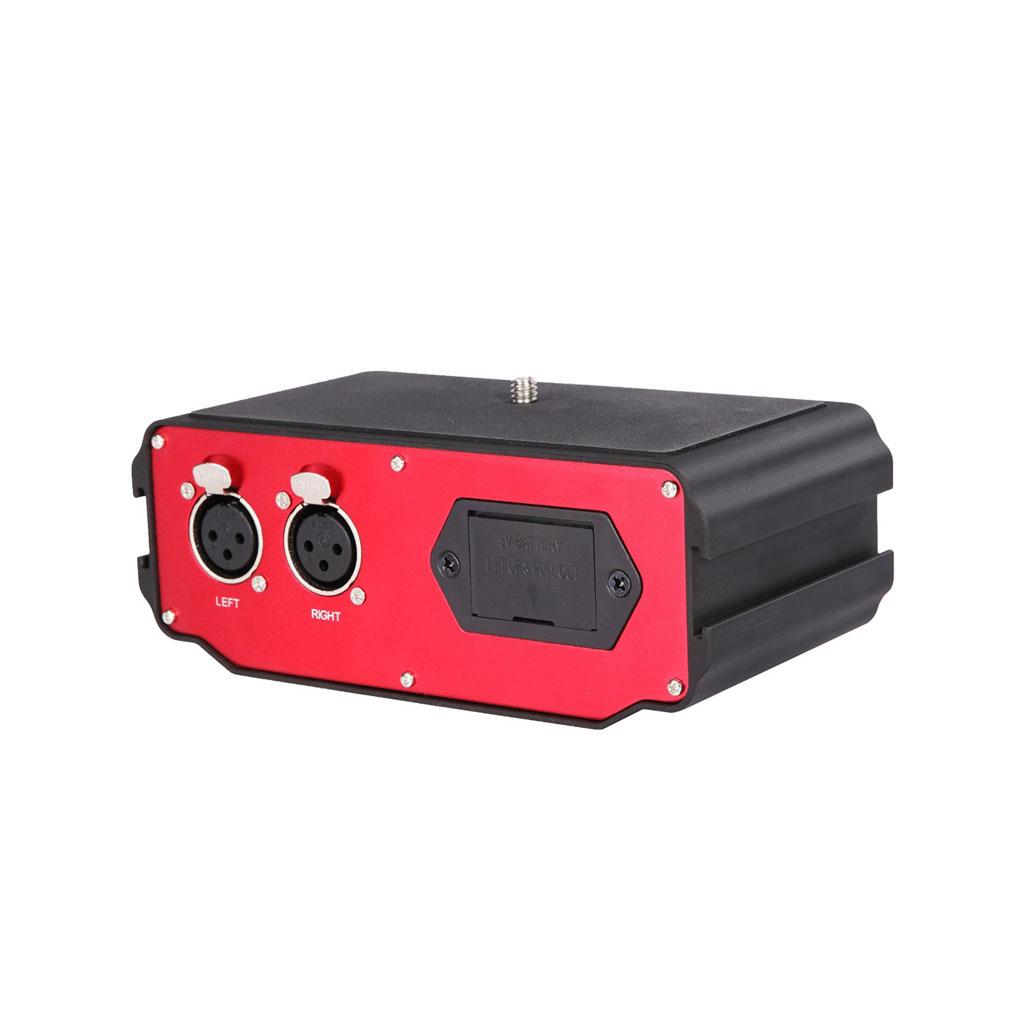

• Input: Balanced Left and Right XLR
• Output: TRS 1/4" output: OUT 1 and OUT 2
• LIN/MIC/PH:
• Select LINE when the camera is set to LINE input
• Select MIC when set to MIC input
• Select PH when each channel requires phantom power.
• PH (Phantom) Voltage: Select phantom voltage to 12V, 48V, or OFF.
• LED Light power switch: Turns LED Warning Red Light on or off.
• VU meter: Indicates sound level in dB for each channel
• LEFT and RIGHT Trim Control: Automatically adjusts the output levels of each channel
• M/S switch: Select Mono or Stereo output mode.
• Power switch: Main power switch for BMCC-A01

Technical Specifications:

• Input Level: MIC 0 dB on the Level meter at -44 dBu input; LINE 0 dB on the Level meter at +10 dBu input
• Gain: Unity
• Frequency Response: 10Hz to 100kHZ (+/-0.5 dB)
• THD: Less than 0.01% @ 1 kHz, -30 dBu input
• S/N Ratio: 80 dB @ 1Khz, -30 dBu input
• Level Meter: -18 to +3 dB in 3 dB increments
• Battery type: One 9 volt alkaline or lithium battery
• Battery Life (no phantom): 6 hours with alkaline battery; 12 hours with lithium battery
• Dimensions: L 155 x W 98 x H 64 mm
• Weight: 615g (21.7oz.)
